King Plasti-Bal® Solid Polymer Sheets are Heavy-Duty, Waterproof, Aesthetically Attractive, Graffiti Resistant, Easy to Clean, HDPE Partition Boards Designed for Commercial Architectural Applications.
Now Available for Upgrade with a ASTM E-84 Class A or B Flame/Smoke Rating and CAN/ULC-S102 for Canadian Rating
- Description
- Applications
- Specifications
- Physical Properties
- Colors
- LEED Points
- Downloads
- Flame Rating
King Plasti-Bal® is a heavy-duty, waterproof, aesthetically attractive, graffiti resistant, easy to clean, HDPE board designed for commercial architectural applications as well as other various industrial applications. Plasti-Bal® is offered in seventeen colors in matte gloss finish. Also available upon request are two designer textures.
All of the Plasti-Bal® colors are green, which will let you qualify for LEED® rating points with this latest HDPE polymer sheet solution from King Plastic Corp.
Plasti-Bal® is made entirely of FDA approved materials.
King Plasti-Bal® is available with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99%.
General Applications:

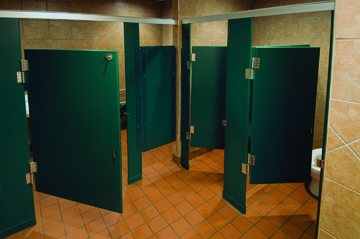

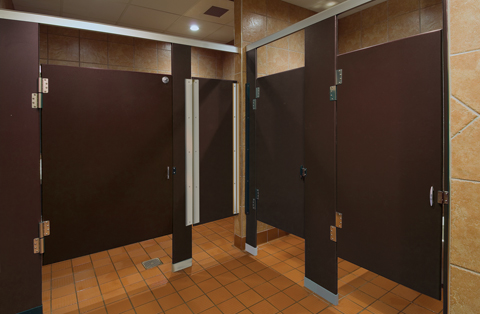

- Bathroom partitions
- Vanity & counter tops
- Benches & shower enclosures
- Clean rooms
- Toilet Partitions

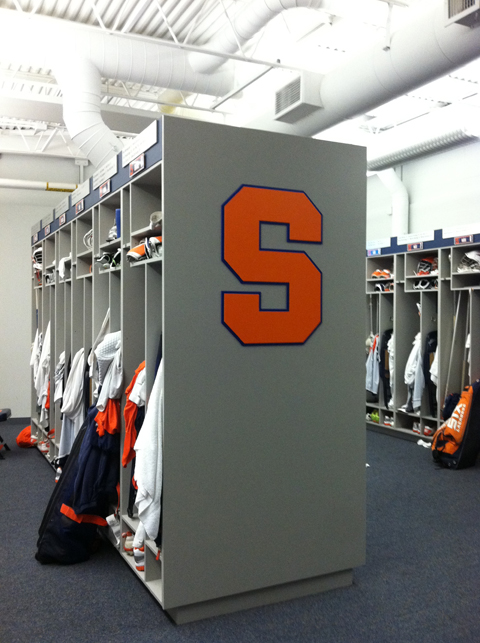

- Lockers & locker room components
Sheet Sizes: (in)
1″ x 55.5″ x 144″
Approximate weight:(lbs)
270 lbs
Standard Gauge: (in)
(.950″ – .999″) Both width and length Plus Only at room temperature
Sheet Sizes: (mm)
25.4mm x 1409.7mm” x 3657.6mm
Approximate Weight: (kg)
122.5 kg
Standard Gauge: (mm)
24.13 mm – 25.4 mm
| Properties | Units | ASTM | Plasti-Bal® |
| Density | g/cc | D1505 | .96 |
| Tensile Strength @ Yield | psi | D638 | >4100 |
| Tensile Modulus | psi | D638 | 255,000 |
| Elongation @ Yield | % | D638 | 9.8 |
| Elongation @ Break | % | D638 | >600 |
| Flexural Modulus | psi | D790 | 185,000 |
| Flexural Stress @ 5% Strain | psi | D790 | 3,810 |
| Compressive Properties 10% Strain | psi | D695 | 4,950 |
| Durometer | Shore D | D2240 | 68 |
| Tensile Impact | ft.lbs./in.2 | D1822 | 115 |
| Izod Impact Resistance | ft.lbs./in.2 | D256 | 1.1 |
| Brittleness Temp. | ºF | D746 | <-105º |
| Vicat Softening | ºF | D1525 | 253º |
| Heat Deflection Temp. 66 psi | ºF | D648 | 167º |
| Screw and Nail Withdrawl | lbs | D1761 | 657 & 63 |
| Flammability | Rating | UL94 | HB |
*All values are determined on specimens prepared according to ASTM Standards.
Nominal values should not be interpreted as specifications.
King Plasti-Bal® is made entirely from FDA and USDA approved materials.
King Plasti-Bal® meet ASTM 4976 PE235
King Plasti-Bal Physical Properties| King Plasti-Bal MSDS
Standard Colors:
Island Sand, Adobe, Sierra Brown, Brownstone,
Greenstone, Wedgewood, Parchment, Deckhand Gray, Whale Gray, Ebony, Basin Blue, Teton Red, Emerald Blade, Berry
Premium Colors:
Rain Drop, Taupe Speckletone,
Quartz Speckletone
*Note: These images illustrate the various color. Due to the wide variances in computer monitors and printers, King Plastic Corporation does not recommend using these graphics for color matching purposes. Please contact your distributor for details.
LEED for Existing Buildings,
September 2008
1 point: MR Credit 2.2 Sustainable
Purchasing: Durable Goods
LEED for New Construction,
Version 2.2
2 points: MR credit 4.2 Recycled Content
LEED for Commercial Interiors,
Version 2.0
2 points: MR credit 4.2 Recycled Content
1 point: EQ credit 4.5, Low-Emitting materials
LEED for Homes,
January 2008
.5 point: MR credit 2.2 Environmentally
Preferable Products
LEED for Schools,
First Edition, November 2007
2 points: MR Credit 4.2 Recycled Content
Green Guild for Health Care,
Version 2.2
1 point: MR Credit 5.2 Furniture & Medical
Furnishings: Materials
1 point: MR Credit 5.3 Furniture & Medical
Furnishings: Manufacturing, Transportation
and Recycling
Protect Your Interests with E-84 Class A or B Flame Rated Polymer Sheets from King Plastic Corporation
Available in King Plasti-Bal®
The ASTM E84
This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index.
Results
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Class B Interior Finish:
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.
