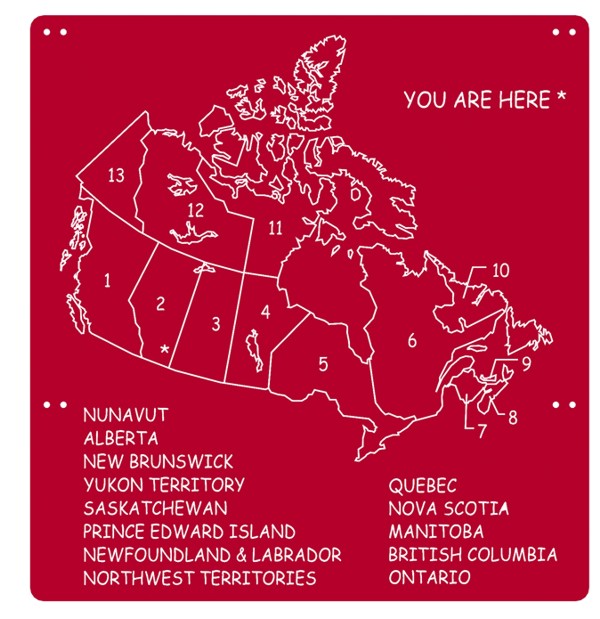

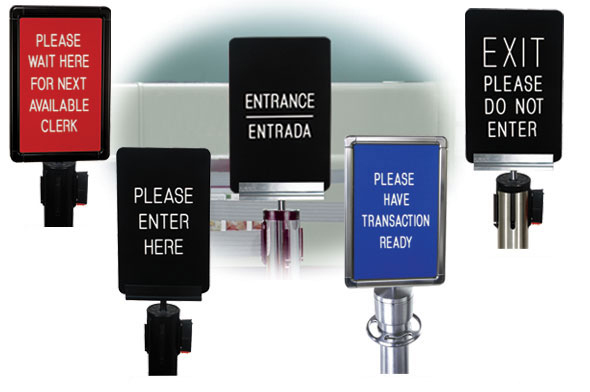

King ColorCore® the very popular, versatile, environmentally stabilized sheet with contrasting colors ideal for engraving.
Now Available for Upgrade with King FlameShield for our ASTM E-84 Class A or B Flame/Smoke Compliance and CAN/ULC-S102 for Canadian Compliance

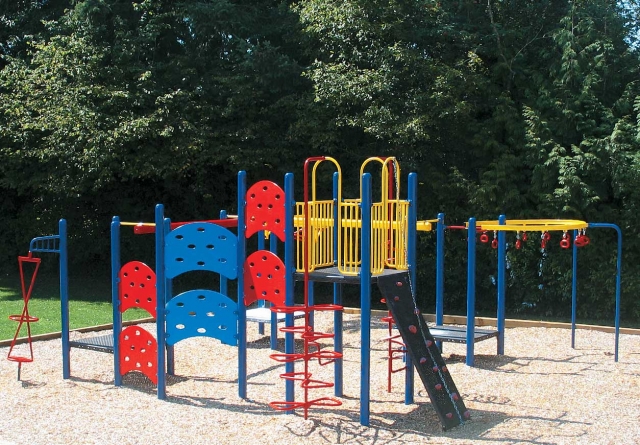

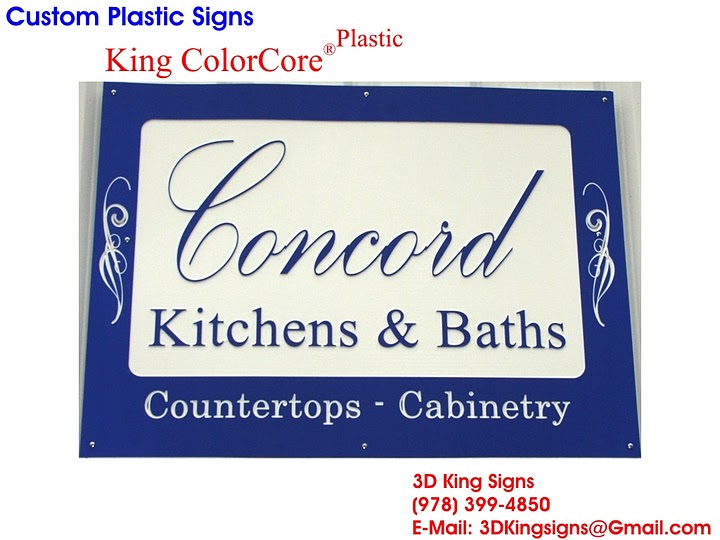

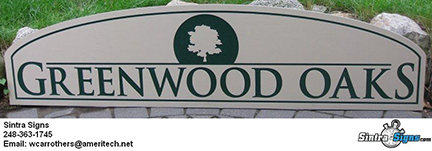

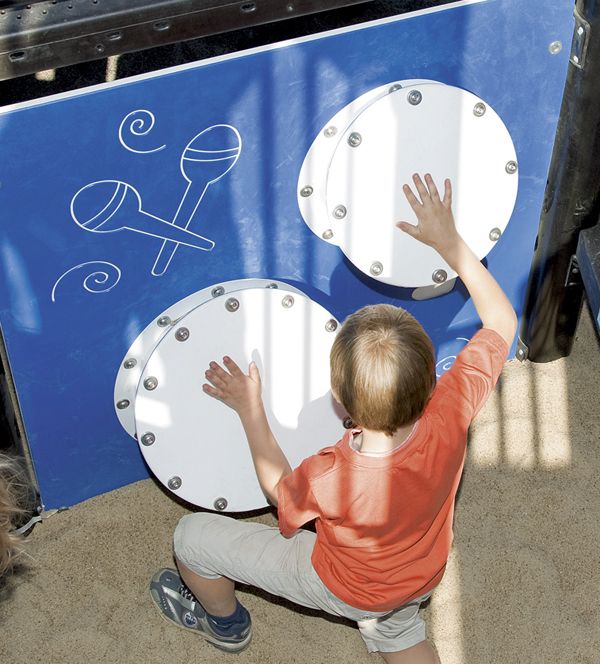

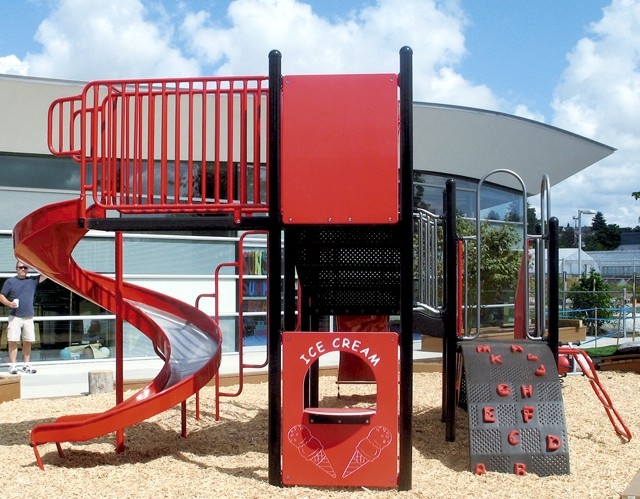

King ColorCore® is environmentally stabilized high-density polyethylene which has been developed to withstand the harshest outdoor conditions. It can be used in wet areas that need to be washed often for cleaning, or are regularly exposed to moisture. It can be fabricated using common woodworking tools and techniques. Its thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with King ColorBoard®. We have improved King ColorCore® so it is now easier than ever to engrave. We have made the cap consistent in thickness for all three gauges of King ColoCore®, for a very uniform appearance. So when your project calls for different gauges of material, you can be confident the at your engravings will have the same quality look from sheet to sheet. Base materials are FDA approved as are most pigments. It is made with high-impact-resistant polymer to handle more abuse than conventional sign materials. King ColorCore is a superior homogeneous sheet, made with a unique state-of-the-art continuous process called PolyFusion®. It is manufactured to the highest standards in the industry.
Standard Sheet Sizes: (in/mm) Standard Gauge: (in/mm) Weight: (lbs/kg) Tolerance information: Gauge ± 5%, both width and length Plus Only at Room Temperature
*All values are determined on specimens prepared according to ASTM Standards. Nominal

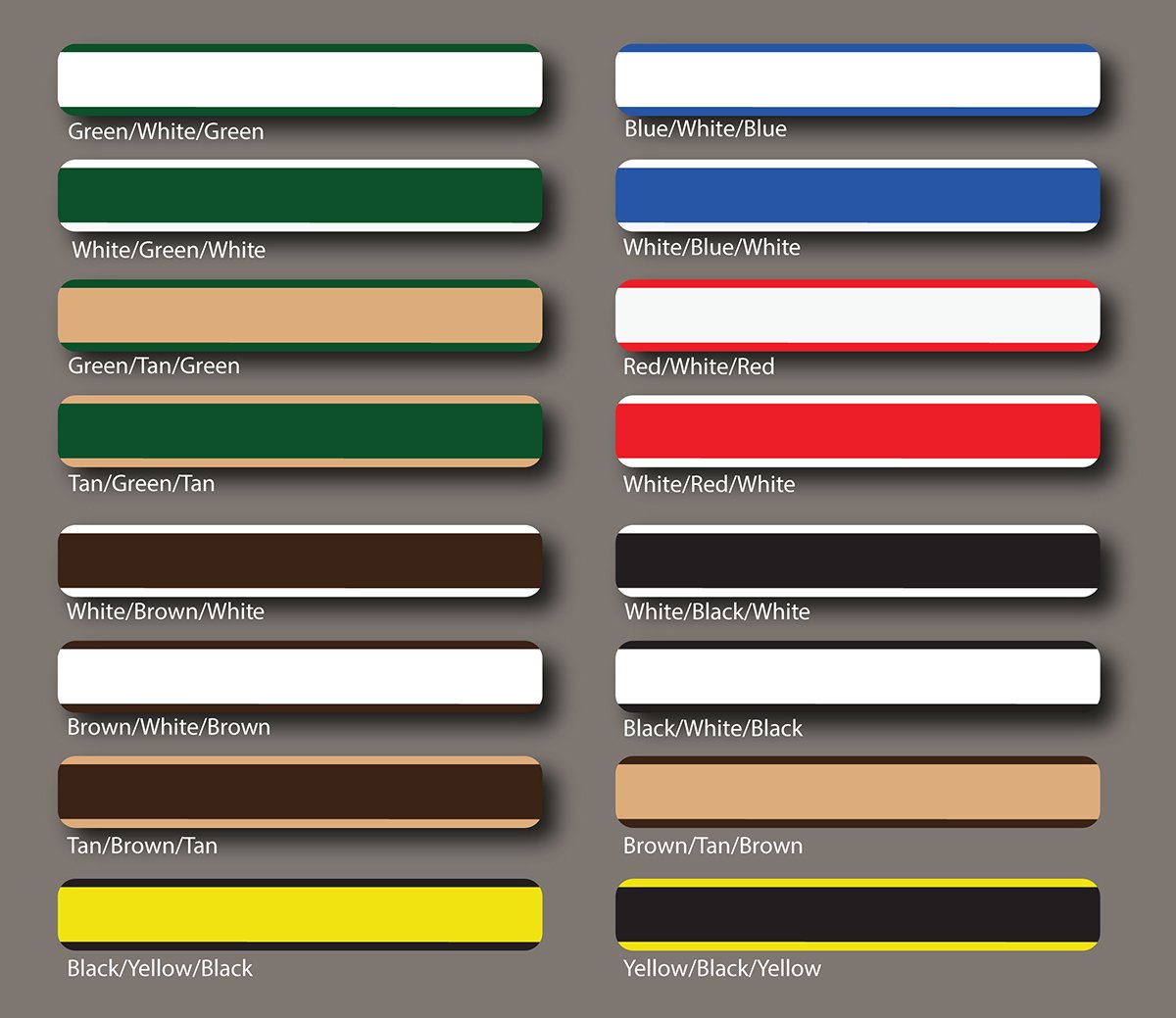

Protect Your Interests with E-84 Class A or B Flame Rated Polymer Sheets from King Plastic Corporation The ASTM E84 This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index. Results Class B Interior Finish: *Note: These images illustrate the various color combinations. Due to the wide variances in computer monitors and printers, King Plastic Corporation does not recommend using these graphics for color matching purposes. Please contact your distributor for details.
King ColorCore® is upgradable with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99% and killing the microbes on contact. See our King MicroShield® page for more information.
48″ x 96″ / 1219mm x 2438mm
Custom sizes available
1/4″| 1/2″| 3/4″ | 6.4mm | 12.7mm | 19mm
Custom thicknesses available.
40 lbs | 80 lbs | 120 lbs | 18kg | 36kg | 54kg
Properties
Units
ASTM
Nominal Values
Density
g/cc
D1505
.96
Tensile Strength @ Yield
psi
D638
>4100
Tensile Modulus
psi
D638
225,000
Elongation @ Yield
%
D638
9.8
Elongation @ Break
%
D638
>600
Flexural Modulus
psi
D790
185,000
Flexural Stress @ 5% Strain
psi
D790
3,810
Compressive Properties 10% Strain
psi
D695
4,950
Durometer
Shore D
D2240
68
Tensile Impact
ft.lbs./in.2
D1822
115
Izod Impact Resistance
ft.lbs./in.2
D256
1.1
Brittleness Temp.
ºF
D746
<-105º
Vicat Softening
ºF
D1525
253º
Heat Deflection Temp. 66 psi
ºF
D648
167º
Screw and Nail Withdrawl
lbs
D1761
657 & 63
Flammability
Rating
UL94
HB
values should not be interpreted as specifications.
King ColorCore® is made entirely from FDA and USDA approved materials
King ColorCore® meets ASTM D4976 PE235
Properties
Units
ASTM
Nominal Values
Density
g/cc
D1505
1.3 – 1.35
Tensile Strength @ Yield
p.s.i.
D638
3780
Tensile Strength @ Break
p.s.i.
D663
1,170
Elongation @ Yield
%
D638
8.6
Elongation @ Break
%
D638
53
Flexural Modulus
p.s.i.
D790
179,000
Durometer (Hardness)
Shore D
D2240
71
Flexural Stress @ 5% Strain
PSI
D790
4330
Vicat Softening
ºF
D1525
264
Heat Deflection Temp.
66p.s.i.ºF
D648
188
Coefficient of Linear
Thermal Expansionin./in./ºF
D696
6×10-5
Class A
Class B
Surface Burning Characteristics
FSI & SDI
E-84
20 & 60
60 & 450
Surface Burning Characteristics
FSI & SDI
ULC-S102
20 & 65
60 & 450
Available in King ColorCore®
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.
ASTM E84 Class A Certification| ASTM E84 Class B Certification
