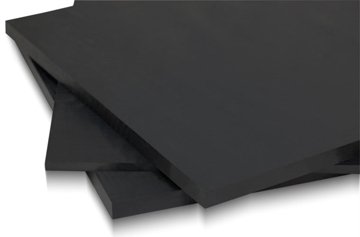

King Plastic Corporation’s Black Noryl® is a High-Performance Engineering Sheet Molded from Quality EN 265 Resin. Standard Sheet Size is 48”x96”. Custom Sheet Sizes are Available.
King Plastic Corporation’s black Noryl® is a strong engineering plastic with outstanding mechanical, thermal and electrical properties. Very low moisture absorption and low thermal expansion make Noryl® one of the most dimensionally stable thermoplastics available. Noryl® is widely used for electrical housings and structural components since it has excellent insulating properties, flame resistance, and dimensional stability over a wide range of service temperatures. Noryl® is often selected for fluid handling applications since it has low moisture absorption and excellent strength and stiffness and is easily machined, fabricated, painted and glued.
Not suitable for direct exposure to petroleum products
- Self-extinguishing
- Excellent hydrolytic and dimensional stability
- Heat resistant. RTI up to 230°F (110°C)
- Impact resistant
- Easily machined
- Non-conductive
- Low moisture absorption
- Fluid handling and water pump housings
- Structural and interior components in electrical/electronic equipment
- Automotive under-hood components
- Frames, ventilating parts
- Building and construction
- Telecommunications
Standard Sheet Sizes: (in)
48” x 96”
Standard Gauge: (in)
1/2” | 5/8” | 3/4” | 1” | 1-1/4” | 1-1/2” | 1-3/4” | 2” | 2-1/4” | 2-1/2” | 3” | 4”
Weight: (lbs)
88 lbs | 110 lbs | 132 lbs | 176 lbs | 220 lbs | 264 lbs | 309 lbs | 353 lbs | 397 lbs | 441 lbs
| 529 lbs | 705 lbs
Standard Sheet Sizes: (mm)
1219mm x 2438mm
Standard Gauges: (mm)
12.7mm | 15.875mm | 19.05mm | 25.4mm | 31.75mm | 38.1mm| 44.75mm | 50.8mm | 57.15mm | 63.5mm | 76.2mm | 101.6mm
Weight: (lbs)
40kg | 50kg | 60kg | 80kg | 99.7kg | 119.7kg | 140kg | 160kg | 180kg | 200kg | 240kg
| 319.7kg
Custom Sizes Available up to 96” width and 100’+ in length
Tolerance Information:
Gauges 1/2″ through 1-1/4″ is +/- 10%, width and length plus only at room temperature
Gauges greater that 1-1/2″ is plus only
| Properties | Units | ASTM | Nominal Values |
| Density | g/cc | D792 | 1.08 |
| Tensile Strength @ Yield | psi | D638 | 9,200 |
| Elongation @ Break | % | D638 | 25 |
| Flexural Modulus | psi | D790 | 370,000 |
| Flexural Yield Strength | psi | D790 | 14,400 |
| Durometer | Rockwell-R | D785 | 119 |
| Gardner Impact | ft./lbs. | D3029 | 11 |
| Notched Izod Impact | ft.lbs./in. | D256 | 3.5 |
| Arc Resistance | PLC Code | D495 | 6 |
| Heat Deflection Temp. 264p.s.i. |
ºF | D648 | 255º |
| Oxygen Index | % | D2863 | 29.2 |
| Flammability | Rating | UL94 | V-1 |
All values are determined on specimens prepared according to ASTM Standards
Nominal values should not be interpreted as specifications
King Noryl® is RoHS, directive 2002/95/EC and its amendments
