King PipeGrade® PE-100

King PipeGrade® is a special black polyethylene material for the pipe industry.
It is available in sheets, slabs, and massive shapes.

Find a Distributor Request a Quote

King PipeGrade® is PE 4710 – PE 100 material, which is compliant to ASTM 3350 as a standard material. ASTM 3350/4710 PE100 is completely compatible and 100% interchangeable for use in applications that presently use ASTM 3603 – PE 80 material. King PipeGrade® is FDA and NSF Standard 14 certified and complies with ANSI/NSF Standard 61 to be used in potable water piping systems

PE 4710- PE 100 tends to have a higher hydrostatic design basis (HDB) than other resins but most significantly is the notched tensile/slow crack PENT test which is > 10,000 hours vs. 100-200 hours for others.

50 – 100 years service life per ISO CRS 10 MPa @ 20º C.

  • Gas lines
  • Water mains
  • Irrigation
  • Aquaculture
  • Industrial process piping
  • Hot and cold water distribution systems
  • Plumbing pipes and fittings
  • Water and sewage treatment — paddles, weirs, wear
    shoes, sprockets, chain guides
  • Gravity and force main industrial and municipal
    sewer systems
  • Submerged marine installations

Standard Sheet Sizes: (in)

1/8″ to 1-1/2″: 48″ x 96″
1-1/2″ to 4″: 48″ x 96″
1/4″ to 1-1/2″: 60″ x 120″
Custom Sizes: Please Inquire

Standard Gauge: (in)

48″ X 96″
1/8″  | 3/16″ | 1/4″ | 3/8″ | 1/2″ | 5/8″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 1-3/4″
2″ | 2-1/4″ | 2-1/2″ | 2-3/4″ | 3″ | 3-1/2″ | 4″

60″ x 120″
1/4″ | 1/2″ | 3/4″ | 1″ | 1-1/2″

Standard Weight (in)
48″ x 96″
20 lbs | 30 lbs | 30 lbs | 80 lbs | 100 lbs | 120 lbs | 160 lbs | 200 lbs
240 lbs | 280 lbs | 320 lbs | 360 lbs | 400 lbs | 480 lbs | 570 | 640 lbs

60″ x 120″
62.5 lbs | 125 lbs | 187.5 lbs | 250 lbs | 375 lbs

Custom Sizes: Please Inquire

Tolerance information:
Gauge 1/8″ through 1″ is ± 5%, both width or length is Plus Only at room temperature
Gauge greater than 1″ through 1-1/2″ is -5% +10%, both width and length is Plus Only at room temperature
Gauge greater than 1-1/2″ is Plus Only, both width and length is Plus Only at room temperature

Chemcial Resistance

Properties Units ASTM Nominal Values
Density g/cc D1505 .96
Tensile Strength @ Yield psi D638 3,360
Tensile Strength @ Break psi D638 >5,500
Elongation @ Break % D638 600
Flexural Modulus 2% secant psi D790 150,000
Notched Izod Impact ft.lbs./in.2 D256 9.2
Brittleness Temperature ºF D746 -180º
Vicat Softening Temperature
 ºF D1525 259º
Environmental Stress Crack Resistance hrs D1693C >5000
Notch Tensile (PENT)
 hrs F1473 >10,000

All values are determined on specimens prepared according to ASTM Standards. Nominal values should not be interpreted as specifications.
King PipeGrade® PE-100 complies with the Plastic Pipe Institute PE4710 classification
King PipeGrade® PE-100 meets ASTM D3350 cell class 445574C
PE-100 Pipegrade is FDA and NSF Standard 14 certified and complies with ANSI/NSF Standard 61
RoHS Statement

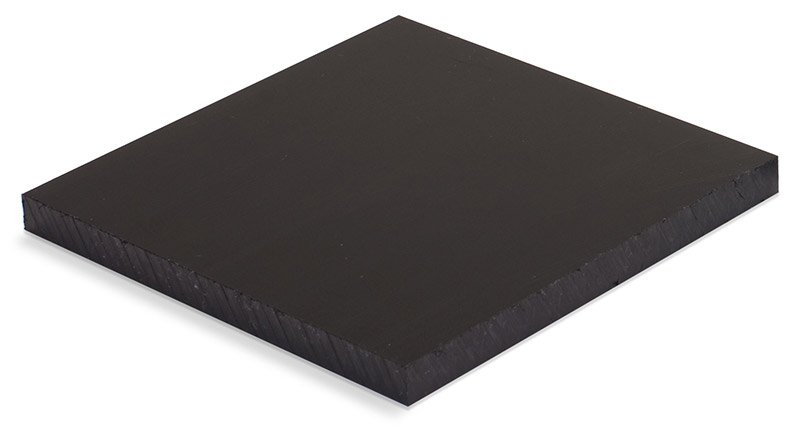

dsc_0088 Black
