King StarBoard® ST is a special, high-density polyethylene sheet that provides a super tough surface for many King StarBoard® applications that last a lifetime
Now Available for Upgrade with King FlameShield for our ASTM E-84 Class A or B Flame/Smoke Compliance and CAN/ULC-S102 for Canadian Compliance
King StarBoard® ST is a special, high-density polyethylene sheet that provides a super tough surface for many King StarBoard® applications. A unique and advanced polymer makes the material 25% stronger than the original King StarBoard®. High scratch-resistance makes it especially appropriate in the construction of cabinets and furniture. Also, its high strength and stiffness make it desirable for applications where less structural support is available. King StarBoard® ST is environmentally stabilized and has been developed to withstand the harshest outdoor conditions. It can be used in wet areas that need to be washed often for cleaning, or are regularly exposed to moisture. It can be fabricated using common woodworking tools and techniques.

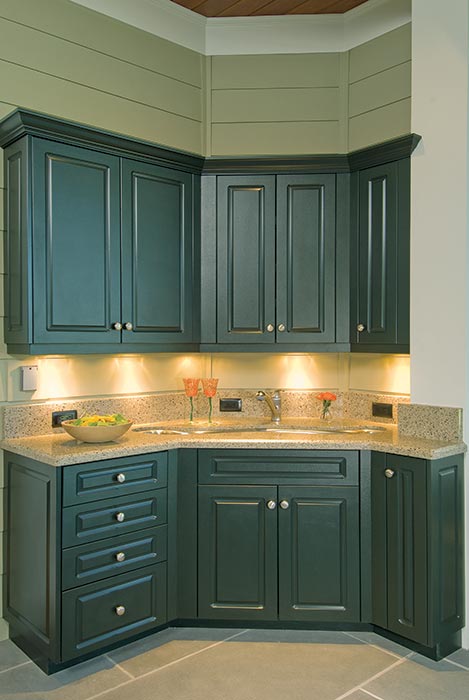

Indoor and outdoor cabinets *Note: Color accuracy can vary considerably on computer monitors and printers. Please consult your distributor for a product sample before making critical color choices. Specialty colors by special order only.
Standard Sheet Sizes: (in) Standard Gauge: (in) Approximate Weight: (lbs) Standard Sheet Sizes: (mm) Standard Gauges: (mm) Custom sheets sizes, gauges, and colors available upon request.
*All values are determined on specimens prepared according to ASTM standards. Nominal
Protect Your Interests with E-84 Class A or B Flame Compliance Polymer Sheets from King Plastic Corporation The ASTM E84 This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index. Results Class B Interior Finish:
1 point: MR Credit 2.2 Sustainable Purchasing: 2 points: MR credit 4.2 Recycled Content 2 points: MR credit 4.2 Recycled Content .5 point: MR credit 2.2 Environmentally 2 points: MR Credit 4.2 Recycled Content 1 point: MR Credit 5.2 Furniture & Medical 1 point: MR Credit 5.3 Furniture & Medical
King StarBoard® ST is upgradable with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99% and killing the microbes on contact. See our King MicroShield® page for more information.
We also offer King StarBoard® ST XL which is a lighter, more economical version of King StarBoard® ST and is up to 30% lighter in weight. It is made with the matte gloss surface and colors for a perfect match and has a thickness tolerance of plus or minus 5%.

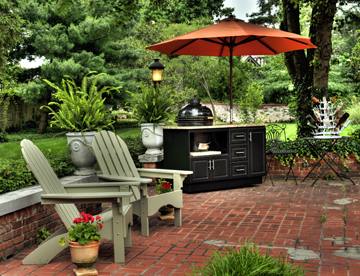

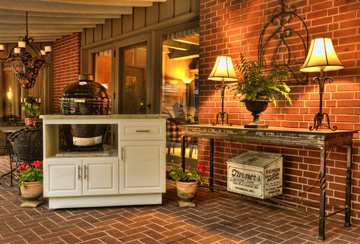

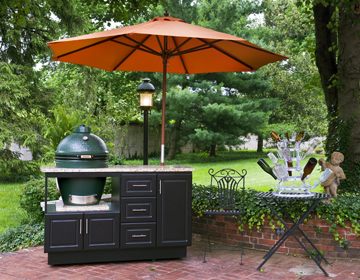

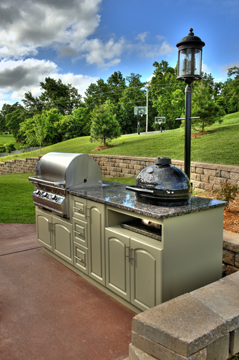

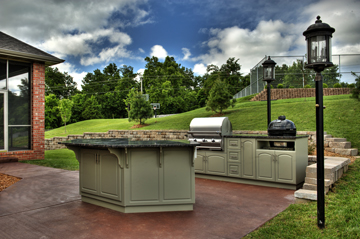

Outdoor kitchens
Counter and tabletops
Lockers

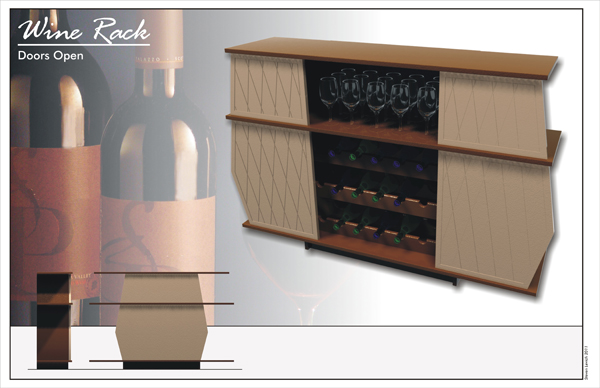

Furniture
Medical casegoods
Playground building material
Kick plates
Dugout areas in sports arenas
Pool areas
48” x 96”
1/4” | 3/8” | 1/2″ | 3/4” | 1” | 1-1/2”
40 lbs | 60 lbs | 80 lbs | 120 lbs | 160 lbs | 240 lbs
1220mm x 2440mm
6.4mm | 9.53mm | 12.7mm | 19mm | 25.4mm |38mm
Approximate Weight: (kg)
18kg | 27kg | 36kg | 54.4kg | 72.6kg | 109kg
Tolerance information: Gauges ± 5%, both width and length Plus Only at room temperature.
King StarBoard® ST is available in an XL version upon request.
Scratch & mar resistance: Internal testing method
shows a 295% improvement over non-ST finish.
Properties
Units
ASTM
StarBoard® ST
StarBoard® STXL
Density
g/cc
D1505
.96
.77
Tensile Strength @ Yield
psi
D638
>4500
>3600
Tensile Modulus
psi
D638
8.8
48%
Elongation @ Break
%
D683
>600
-
Elongation @ Yield
%
D638
8.8
4.8
Flexural Modulus
psi
D790
225,000
163,000
Flexural Stress @ 5% Strain
psi
D790
4,480
3,480
Compressive Properties 10% Strain
psi
D695
4,790
2,820
Durometer
Shore D
D2240
69
68
Tensile Impact
ft.lbs./in.2
D1822
99
-
Izod Impact Resistance
ft.lbs./in.2
D256
1.4
1.7
Brittleness Temp.
ºF
D746
<-105º
-
Vicat Softening
ºF
D1525
270º
-
Heat Deflection Temp. 66 psi
ºF
D648
183º
179º
Screw and Nail Withdrawl
lbs
D1761
755 & 55
548 & 49
Flammability
Rating
UL94
HB
-
values should not be interpreted as specifications.
King StarBoard ST® is made entirely from FDA and USDA approved materials.
King StarBoard ST® meets ASTM 4976 PE 244
RoHS Statement
Properties
Units
ASTM
Nominal Values
Density
g/cc
D1505
1.3 – 1.35
Tensile Strength @ Yield
p.s.i.
D638
3780
Tensile Strength @ Break
p.s.i.
D663
1,170
Elongation @ Yield
%
D638
8.6
Elongation @ Break
%
D638
53
Flexural Modulus
p.s.i.
D790
179,000
Durometer (Hardness)
Shore D
D2240
71
Flexural Stress @ 5% Strain
psi
D790
4330
Vicat Softening
ºF
D1525
264
Heat Deflection Temp.
66p.s.i.ºF
D648
188
Coefficient of Linear
Thermal Expansionin./in./ºF
D696
6×10-5
Class A
Class B
Surface Burning Characteristics
FSI & SDI
E-84
20 & 60
60 & 450
Surface Burning Characteristics
FSI & SDI
ULC-S102
20 & 65
20 & 65
Available in King StarBoard® Products
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.
ASTM E84 Class A Certification| ASTM E84 Class B Certification | FlameShield Physical Properties Sheet | FlameShield MSDS
LEED for Existing Buildings, September 2008
Durable GoodsLEED for New Construction, Version 2.2
LEED for Commercial Interiors, Version 2.0
1 point: EQ credit 4.5, Low-Emitting materialsLEED for Homes, January 2008
Preferable ProductsLEED for Schools, First Edition, November 2007
Green Guild for Health Care, version 2.2
Furnishings: Materials
Furnishings: Manufacturing, Transportation and Recycling
