A King Performance Commodity
King KPC HDPE offers superior corrosion and chemical resistance.
King Plastic Corporation’s HDPE natural is made with FDA and USDA approved materials.
Now Available for Upgrade with King FlameShield for our ASTM E-84 Class A or B Flame/Smoke Compliance and CAN/ULC-S102 for Canadian Compliance
King KPC high-density polyethylene is produced with our proprietary K-Stran® process for unsurpassed flatness and quality up to 1-1/2” in thickness. For larger gauges our state-of-the-art compression molding system is utilized to create the same quality sheets, slabs or massive shapes. King KPC HDPE natural is FDA approved and meets NSF standard 2 and standard 51, which can be used food containers and food equipment. It is extremely versatile with outstanding properties and good chemical resistance for a wide variety of applications, at very competitive cost. KPC HDPE has a low coefficient of friction and can be easily cut, colored, machined, welded, and thermoforming for easy fabrication. It may be used for some structural fabrication because of its superior tensile strength, much more than Low Density Polyethylene. It is moisture resistant, impact resistant and has great abrasion resistance. The material will not splinter, rot or retain harmful bacteria, odors, and is very resistant to cleaning agents.
Standard Sheet Sizes: (in) Standard Gauge: (in) Weight: (lbs) Standard Sheet Sizes: (mm) Standard Gauges: (mm) Weight: (kg) Custom thickness up to 30”/508mm with our Tolerance Information:
*All values are determined on specimens prepared according to ASTM. Nominal values should not be interpreted as specifications.
Protect Your Interests and Upgrade with King FlameShileld for our E-84 Class A or B Flame Compliant Polymer Sheets The ASTM E84 This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index. Results Class B Interior Finish: ASTM E84 Class A Certification | ASTM E84 Class B Certification
King KPC HDPE is upgradable with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99% and killing the microbes on contact. See our King MicroShield® page for more information.

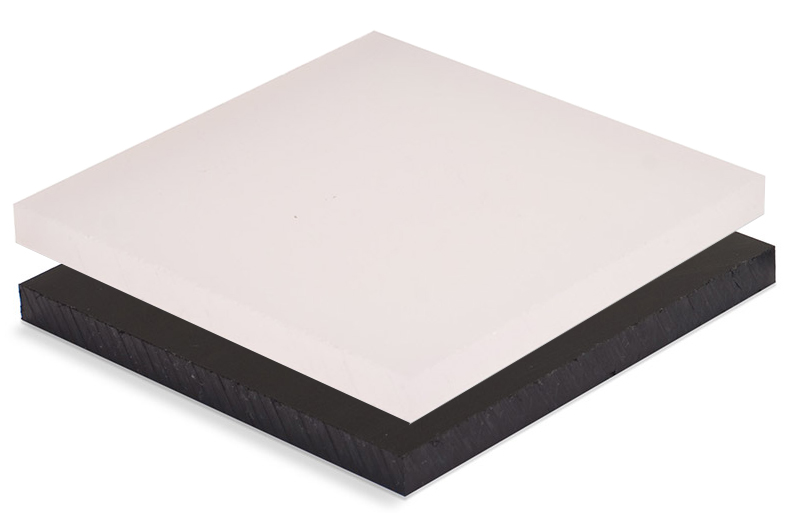

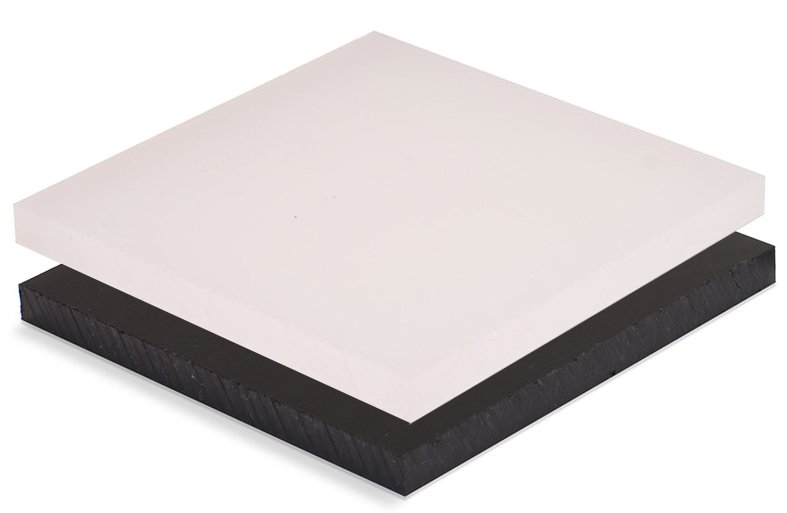

Natural or Black
HDPE Natural
48” x 96”
Custom Sizes Available up to 96” width and 100’+ in length
1/8” | 3/16” | 1/4″ | 3/8” | 1/2” | 5/8” | 3/4” | 1” | 1-1/4” | 1-1/2” | 1-3/4” | 2″ | 2-1/4” | 2-1/2” | 2-3/4” | 3” | 4”
*Note: HDPE Black gauges run from 1/8″ through 1″
20 lbs | 30 lbs | 40 lbs | 60 lbs | 80 lbs | 100 lbs | 120 lbs | 160 lbs | 200 lbs | 240 lbs
| 280 lbs | 320 lbs | 360 lbs | 400 lbs | 440 lbs | 480 lbs | 640 lbs
1219mm x 2438mm
3.18mm | 4.76mm | 6.35mm | 9.53mm | 12.7mm | 15.88mm | 19.05mm | 25.4mm | 31.75mm
| 38.1mm| 44.75mm | 50.8mm | 57.2mm | 63.5mm | 69.9mm | 95.25mm | 101.6mm
9kg | 13.6kg | 18kg | 26kg | 32kg | 45kg | 54.4kg | 72.5kg | 90.7kg | 109kg | 127kg | 145kg | 163kg | 181kg | 199.6 kg | 217.7kg | 290kg
King Size Blocks and Massive Shapes
Gauge 1/8″ through 3/4″ ± 5%, both width or length at room temperature
Gauge greater than 3/4″ under 1-1/2″ is – 5% + 10%, both width or length at room temperature
Gauge greater than 1-1/2″ is Plus Only, both width or length is Plus Only
Properties
Units
ASTM
KPC HDPE
Density
g/cc
D1505
.96
Tensile Strength @ Yield
psi
D638
>4100
Tensile Modulus
psi
D638
225,000
Elongation @ Yield
%
D638
9.8
Elongation @ Break
%
D638
>600
Flexural Modulus
psi
D790
185,000
Flexural Stress @ 5% Strain
psi
D790
3,810
Compressive Properties 10% Strain
psi
D695
4,950
Durometer
Shore D
D2240
68
Tensile Impact
ft.lbs./in.2
D1822
115
Izod Impact Resistance
ft.lbs./in.2
D256
1.1
Brittleness Temp.
ºF
D746
<-105º
Vicat Softening
ºF
D1525
253º
Heat Deflection Temp. 66 psi
ºF
D648
167º
Screw and Nail Withdrawl
lbs
D1761
657 & 63
Flammability
Rating
UL94
HB
King KPC HDPE is made entirely from FDA and USDA approved materials.
King KPC HDPE meets ASTM D4976 PE235
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.
