A King Performance Commodity
King KPC ABS is Easily Machinable and is Available in Smaller Sizes.
It is Extensively Used in Prototyping, the Modeling Industry and Other
Mechanical Applications.
The advantage of King KPC ABS is that this material combines strength and rigidity of the acrylonitrile and styrene polymers with the toughness of the polybutadiene rubber. A variety of modifications have been made to improve impact resistance, toughness and heat resistance. The impact resistance does not fall off rapidly at low temperatures and stability under load is excellent with limited loads. KPC ABS is considered superior for its hardness, gloss, toughness, and electrical insulation properties. KPC ABS is easily machinable and is available in smaller sizes. It is extensively used in prototyping, the modeling industry and other mechanical applications.
We also offer King KPC ABS Black in a FR (flame retardant) formulation for use in applications such as transformer housings, switches, shelving, air conditioner components, and a white food grade formulation which is an outstanding material for professional food services, food accessories and food operations. All King KPC ABS products are FDA approved.
King KPC ABS is manufactured in our state-of-the-art compression molding system located in North Port, Florida.
General Applications
- Machine parts
- Prototype modeling
- Short Run production parts
- Automotive parts
- Industrial enclosures
Physical Properties
- ABS has good chemical and stress cracking resistance to inorganic salt solutions, alkalis, acids, and some oils.
- ABS also has excellent abrasion resistance, electrical properties, moisture and creep resistance.

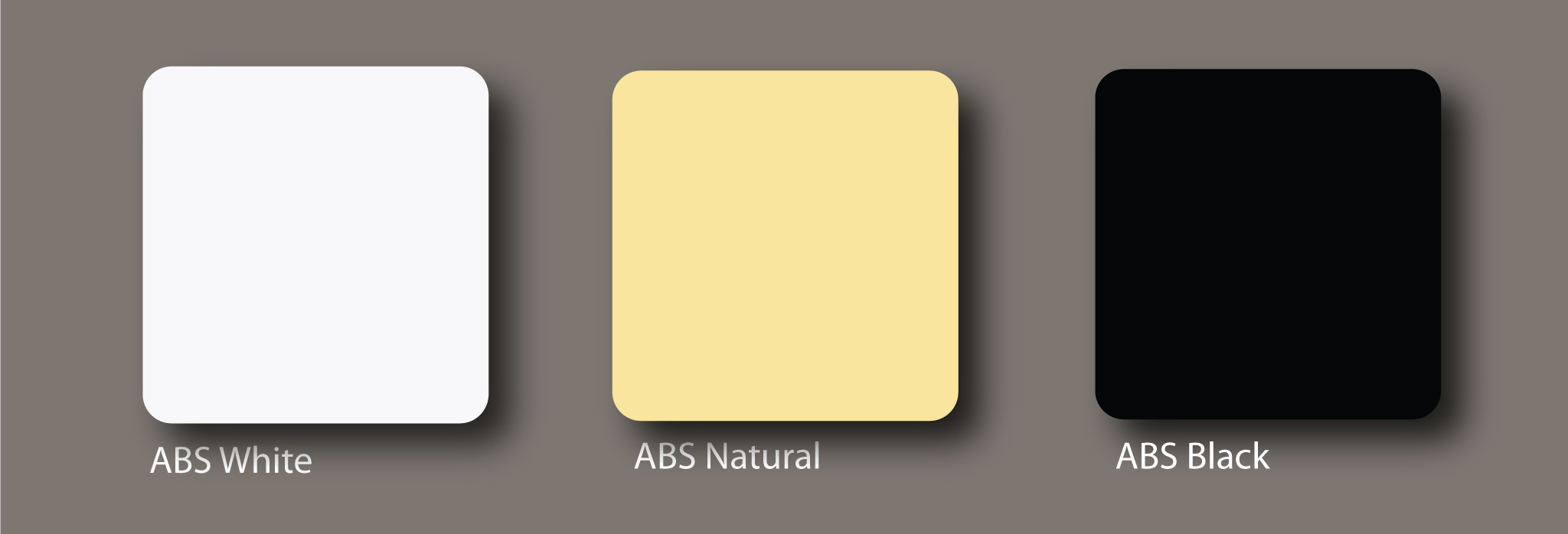

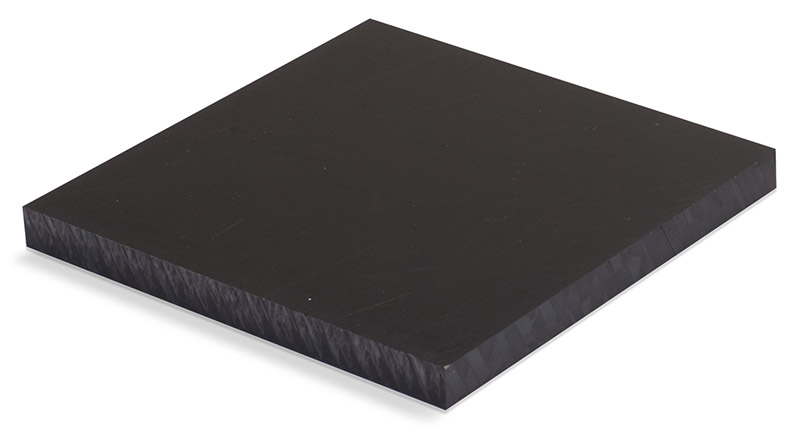

Black

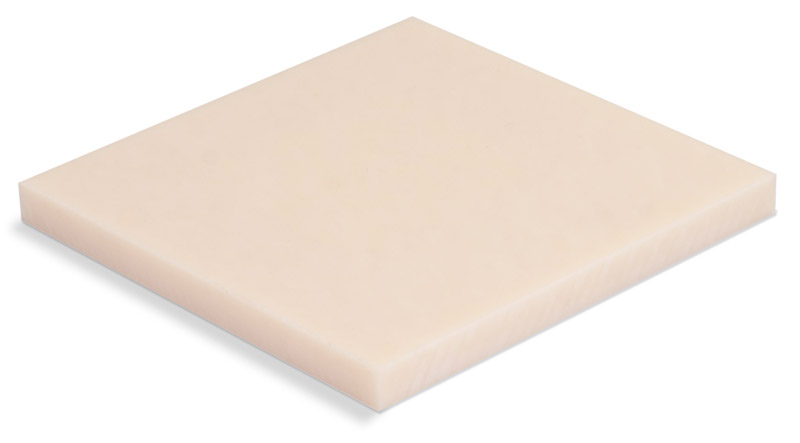

Natural and White (not shown)
Standard Sheet Sizes: (in)
24” x 48” | 48” x 96”
Standard Gauge: (in)
3/8” | 1/2” | 5/8” | 3/4” | 1” | 1-1/4” | 1-1/2” | 1-3/4” | 2” | 2-1/4” | 2-1/2” | 3” | 4”
Weight: (lbs) Wt. per sq. ft.
2 lbs | 2.7 lbs | 3.4 lbs | 4.1 lbs | 5.4 lbs | 6.75 lbs | 8.1 lbs | 9.5 lbs | 10.8 lbs | 12.15 lbs | 13.5 lbs | 16.2 lbs | 21.6 lbs
Standard Sheet Sizes: (mm)
610mm x 1219mm | 1219mm x 2438mm
Standard Gauges: ( mm)
8.81mm | 12.7mm | 15.87mm |19mm | 25.4mm | 31.75mm | 38.1mm | 44.45mm | 50.8mm | 57.15mm | 63.5mm | 76.2mm | 101.6mm
Tolerance Information: Gauge 3/8″ through 1-1/4″ is ± 10%. Gauge 1-1/2″ or greater Plus Only, both width or length Plus Only at room Temperature.
| Properties | Units | ASTM | BLK/NAT ABS |
WHT ABS |
| Density | g/cc | D1505 | 1.03 | 1.04 |
| Tensile Strength @ Yield | psi | D638 | >6,000 | >6,400 |
| Elongation @ Break | % | D638 | 40 | 24 |
| Flexural Modulus | psi | D790 | 300,000 | 333,000 |
| Flexural Yield Strength | psi | D790 | 10,700 | 9,430 |
| Durometer | R Scale |
D785 | 102 | 103 |
| Izod Impact | ft.lbs./in.2 | D256 | 7.7 | 5.6 |
| Vicat Softening Temperature |
ºF | D1525 | 219º | 210º |
| Heat Deflection Temperature 66 psi |
ºF | D648 | 201º | 206º |
| Flammability | Rating | UL94 | HB | HB |
*All values are determined on specimens prepared according to ASTM Standards. Nominal values
should not be interpreted as specifications.
King KPC ABS Black is made entirely from FDA approved materials.
King KPC ABS Natural is made entirely from FDA approved materials.
King KPC ABS White is made entirely from FDA approved materials.
King KPC ABS Black/Natural/White does not contain any or the 29 substances of very high concern based on the European Chemical Agency.
King KPC ABS Black/Natural/White are RoHS Complaint
press release ECHA/PR/10/01
King KPC ABS BLK Physical Properties| King KPC ABS WHT Phyical Properties
King KPC ABS Natural Physical Properties | King KPC ABS MSDS
